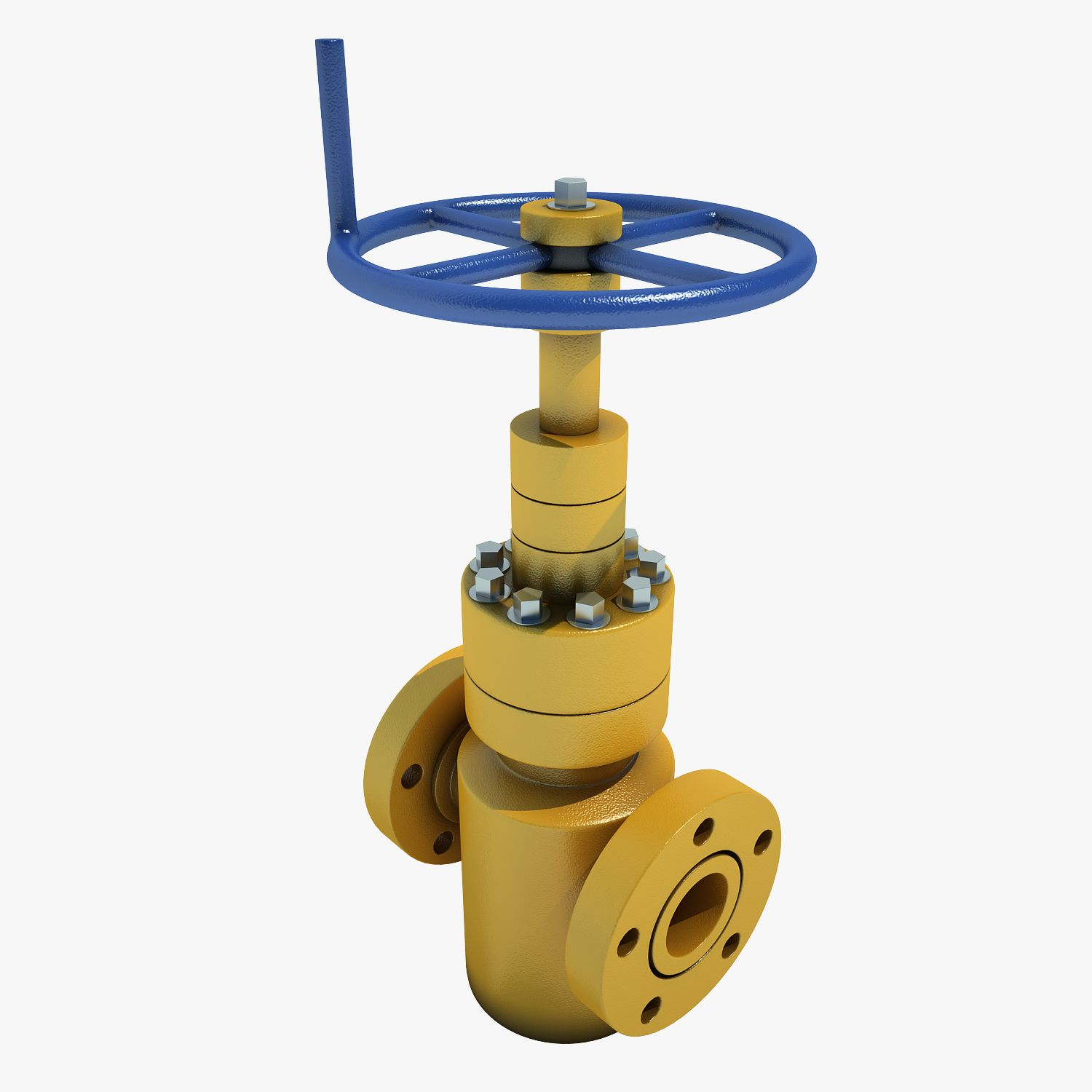

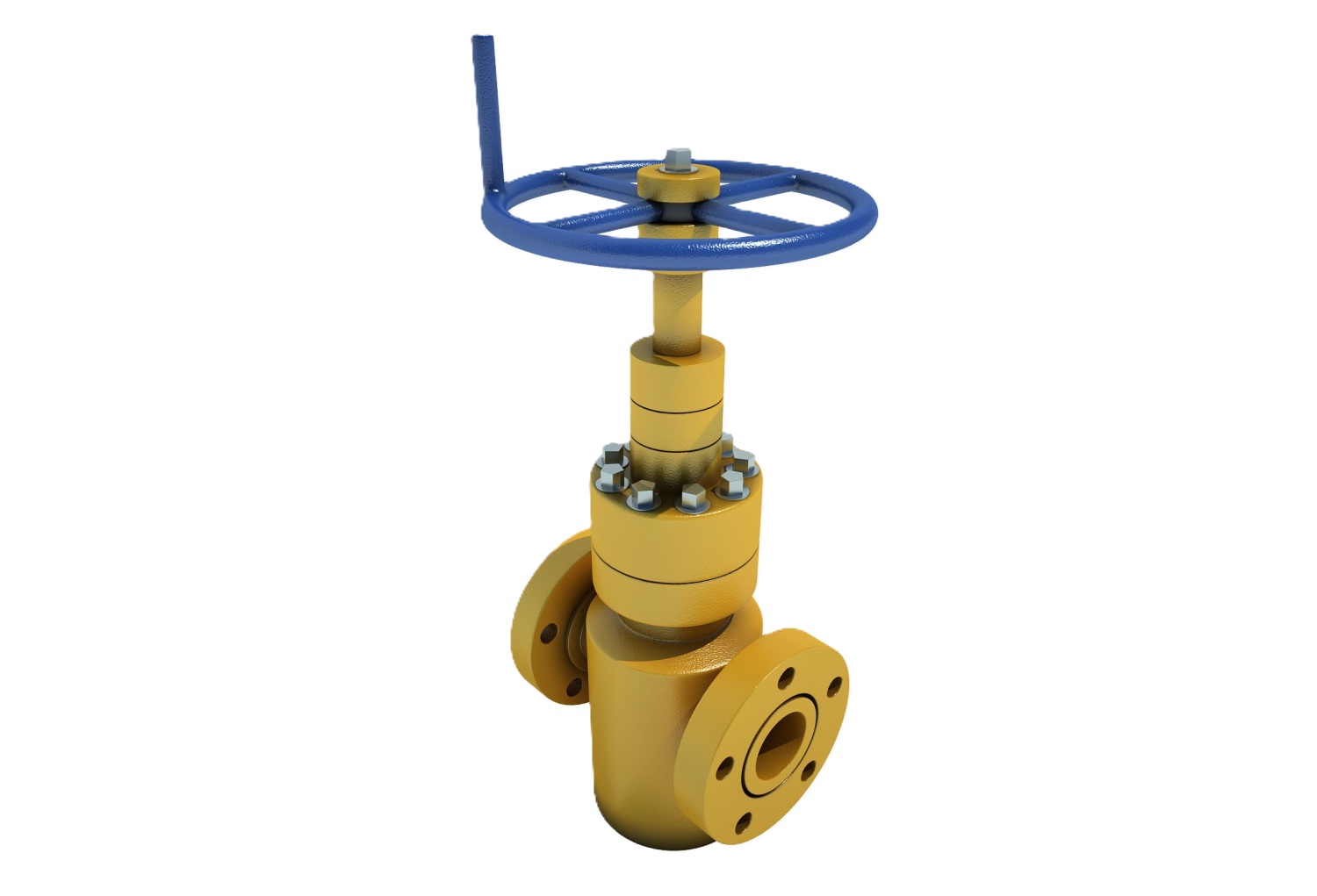

Gate Valves
• Forged – Bolted / Welded / Pressure Seal Bonnet
• Cast – Bolted / Welded / Pressure Seal Bonnet
• Through Conduit Gate Valves
• Knife Gate Valves
• Motor Operated Gate Valves (MOVs)
Sizes range: 1/2” up to 60“(DN 15 up to DN 1500)
Pressure Rating: ASME 150#, 300#, 600#, 900#, 1500#, 2500#
• Cast – Bolted / Welded / Pressure Seal Bonnet
• Through Conduit Gate Valves
• Knife Gate Valves
• Motor Operated Gate Valves (MOVs)
Sizes range: 1/2” up to 60“(DN 15 up to DN 1500)
Pressure Rating: ASME 150#, 300#, 600#, 900#, 1500#, 2500#
Description
"The type of valve used to isolate fluid or gas is determined by the pressures, media being handled, and budget.
- Design – ASME B16.34 / API 602, BS 5352
- Face to Face – ASME B16.10
- End to End – ASME B16.10
- End Flange – ASME B16.5
- BW End – ASME B16.25
- SW End – ASME B16.11
- Screwed Ends – ASME – ANMEB B1.20.1
- Test – API598
- Special – NACE MR-01-75
Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
End Connection: Flanged RF, FF, RTJ, BW, NPT (F & M), SW Ends
Operator / Actuator: Hand wheel Operated"
