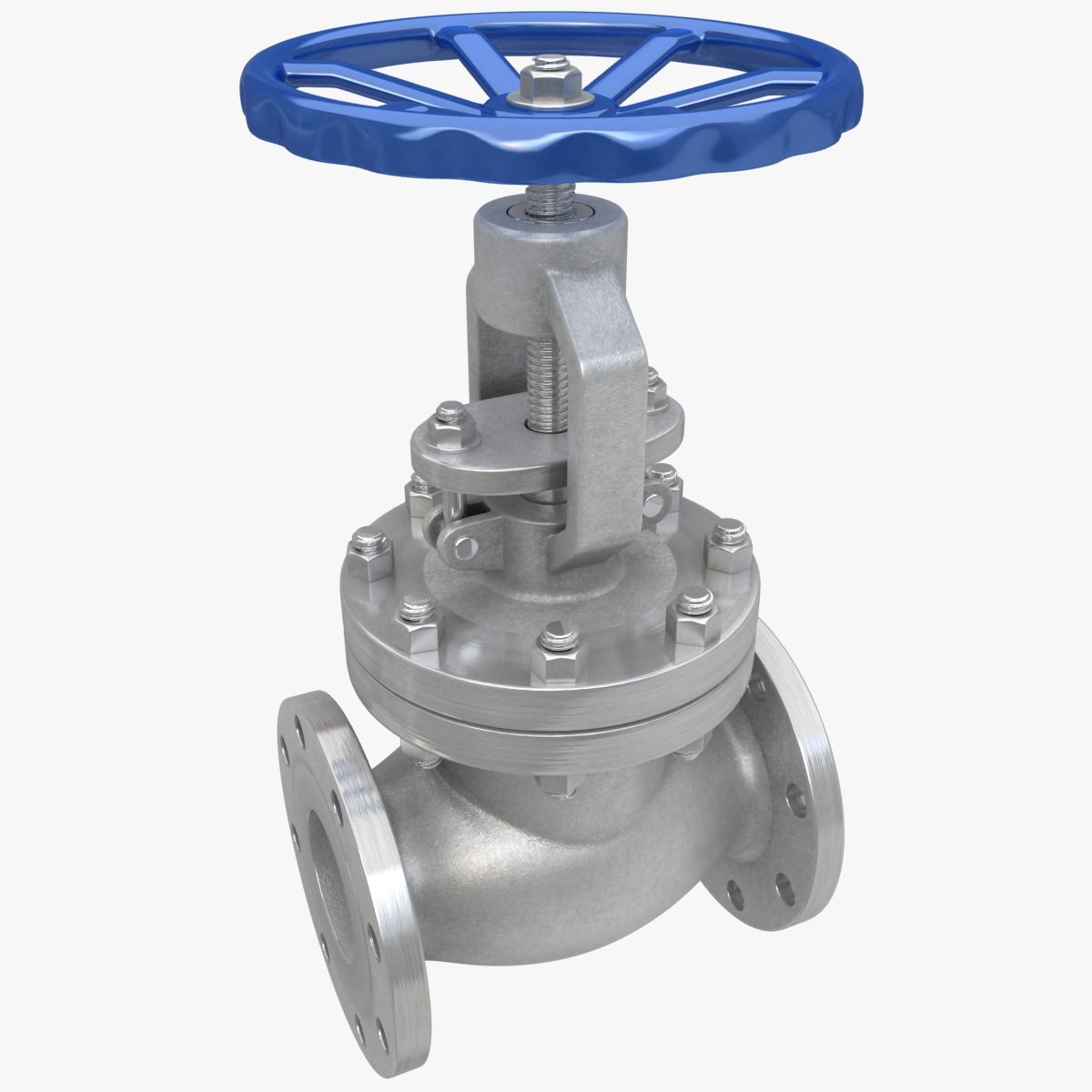

Globe Valves
• Forged – Bolted / Welded / Pressure Seal Bonnet
• Cast – Bolted / Welded / Pressure Seal Bonnet
• Bellow Sealed Globe Valves
Sizes range: ½” up to 60“(DN 15 up to DN 50)
Pressure Rating: ASME 150# to 2500#
Operator / Actuator: Hand wheel Operated, Gear Operated
• Cast – Bolted / Welded / Pressure Seal Bonnet
• Bellow Sealed Globe Valves
Sizes range: ½” up to 60“(DN 15 up to DN 50)
Pressure Rating: ASME 150# to 2500#
Operator / Actuator: Hand wheel Operated, Gear Operated
Description
"Specification:
- Design – ASME B16.34 / API 602, BS 5352
- Face to Face – ASME B16.10
- End to End – ASME B16.10
- End Flange – ASME B16.5
- BW End – ASME B16.25
- SW End – ASME B16.11
- Screwed Ends – ASME – ANMEB B1.20.1
- Test – API598
- Special – NACE MR-01-75
Materials: Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc."
