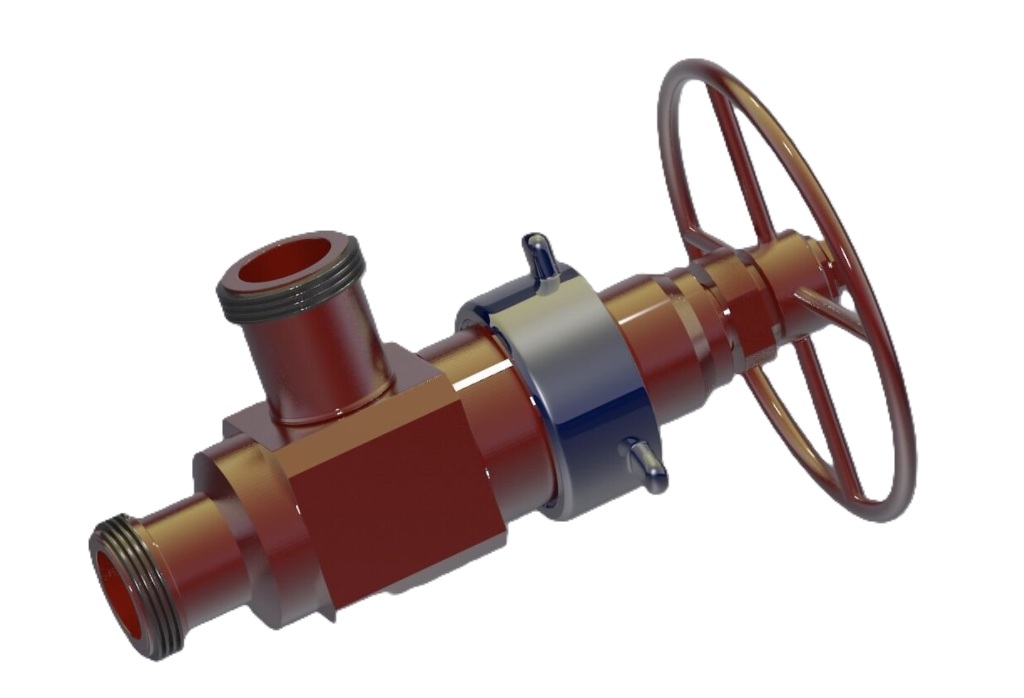

Wellhead Choke Valves
• Adjustable Choke Valve
• Hydraulic Adjustable Choke Valve
• Adjustable Barrel Choke Valve
• Hydraulic Adjustable Barrel Choke Valve
• Positive Choke Valve
Sizes range: 2 1/16” up to 24” as per model
Pressure Rating: 2000 psi to 20000 psi
End Connection: Flanged RF/RTJ, FNPT, UNION, BW Ends
Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Motorized, Electro-Hydraulic)
• Hydraulic Adjustable Choke Valve
• Adjustable Barrel Choke Valve
• Hydraulic Adjustable Barrel Choke Valve
• Positive Choke Valve
Sizes range: 2 1/16” up to 24” as per model
Pressure Rating: 2000 psi to 20000 psi
End Connection: Flanged RF/RTJ, FNPT, UNION, BW Ends
Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Motorized, Electro-Hydraulic)
Description
"Materials: Carbon Steel, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.
Specification & Standards:
Design – API 6A
Face to Face – API 6D
End Flange – API 6D
Test – API598/API6D
Special – NACE MR-01-75"
